Applications:
Widely used in irrigation lines. pumps, rental and construction,dewatering, water suction and discharge.

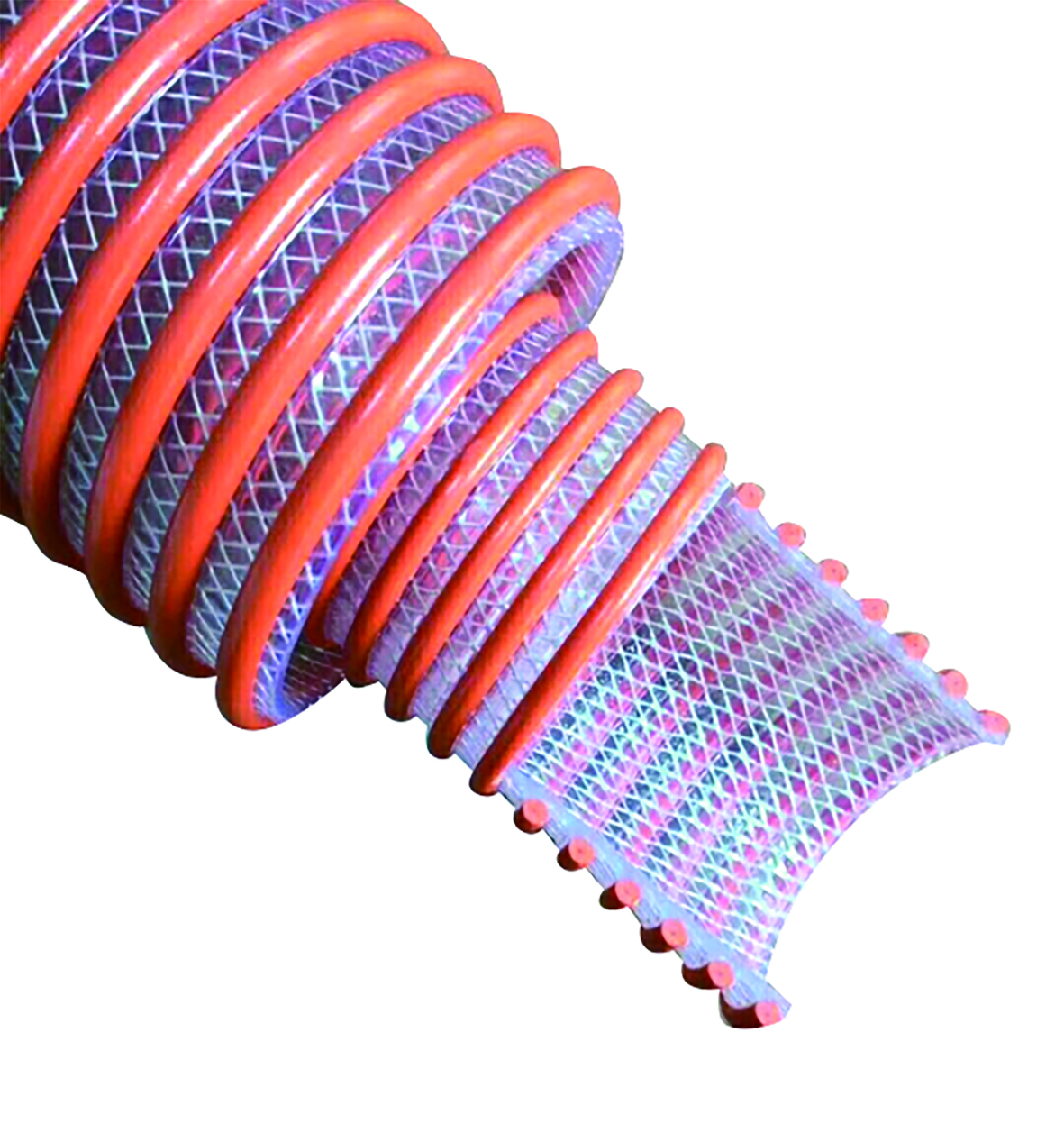

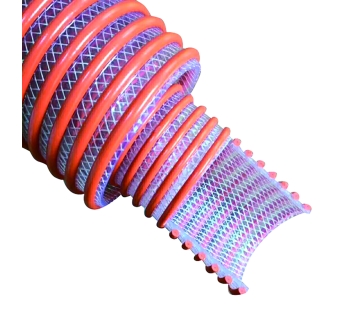

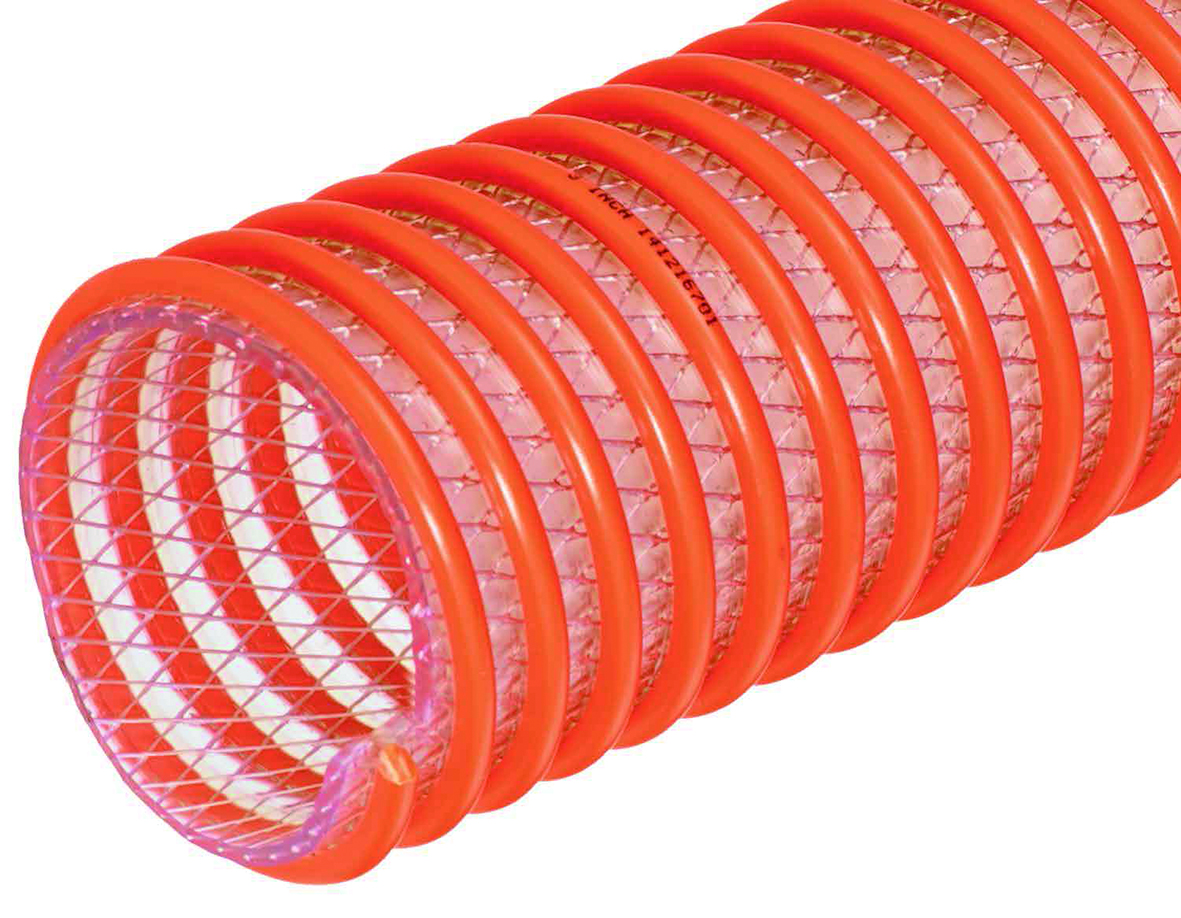

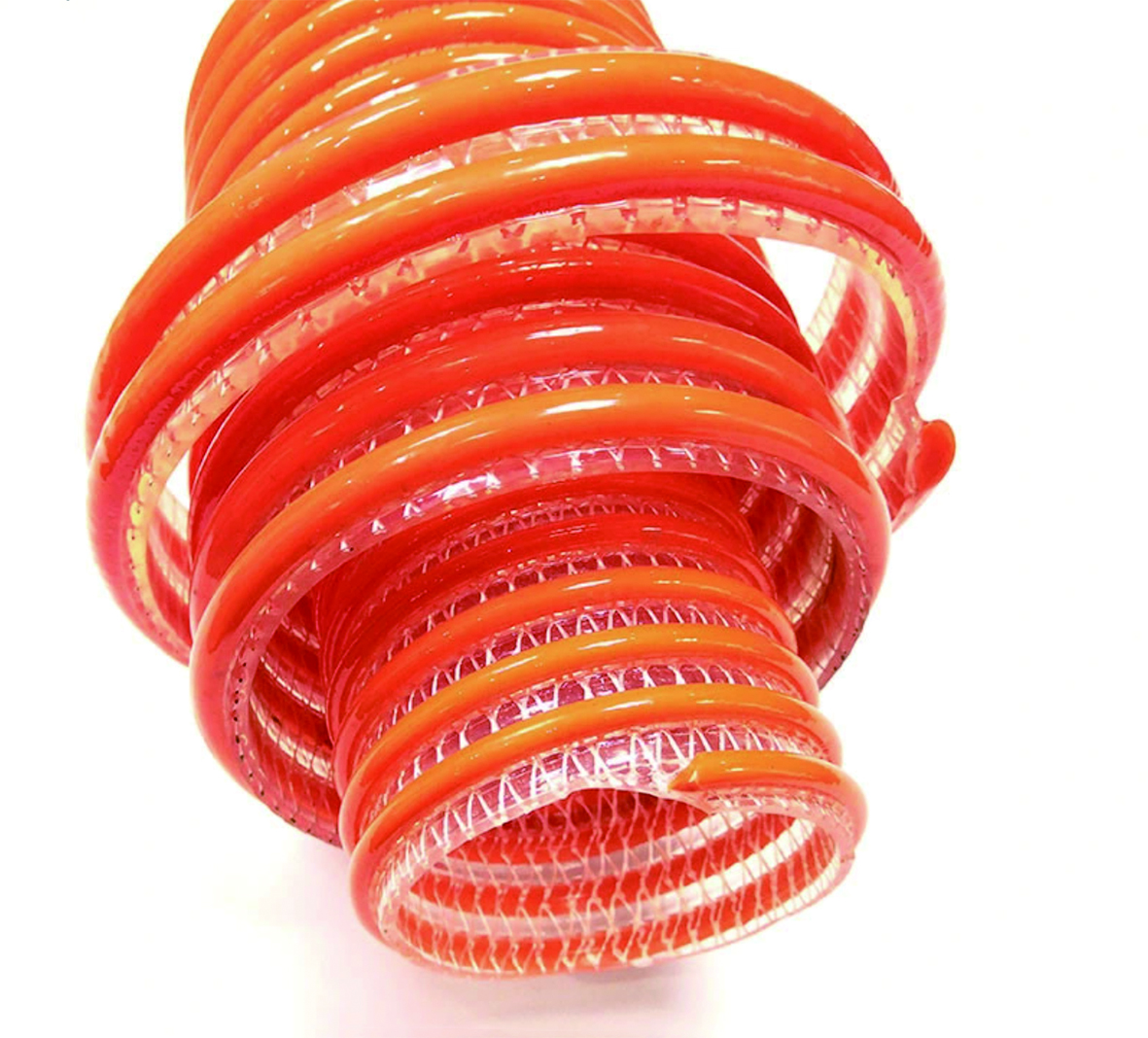

Construction: Double-ply PVC tube, high strength& polyester fabric reinforcement jacket and rigid PVC corrugated helix.
Applicable Temperature: -4 ° F (-20 ℃ ) to 150 ° F (+65 ℃ )*
Nominal Dimension | Size | Pressure at 23℃ | Weight | Standard Length | ||
Inches | I.D. Ø | O.D. Ø | W.P. | B.P. | M/Kg | M |
(mm) | (mm) | Bar | Bar | |||
2” | 51 | 66 | 7 | 20 | 1.2 | 30 |
2-1/2” | 64 | 76 | 7 | 20 | 1.7 | 30 |
3” | 77 | 95 | 6 | 18 | 2.2 | 30 |
4” | 102.5 | 121 | 5 | 16 | 3.2 | 12/15/18/30 |
5” | 127.5 | 152 | 5 | 15 | 4.5 | 12/15/18/20 |
6” | 154.5 | 180.5 | 5 | 15 | 5.8 | 12/15/18/20 |
8” | 203.5 | 232 | 4 | 12 | 8.6 | 12 |
