Features:

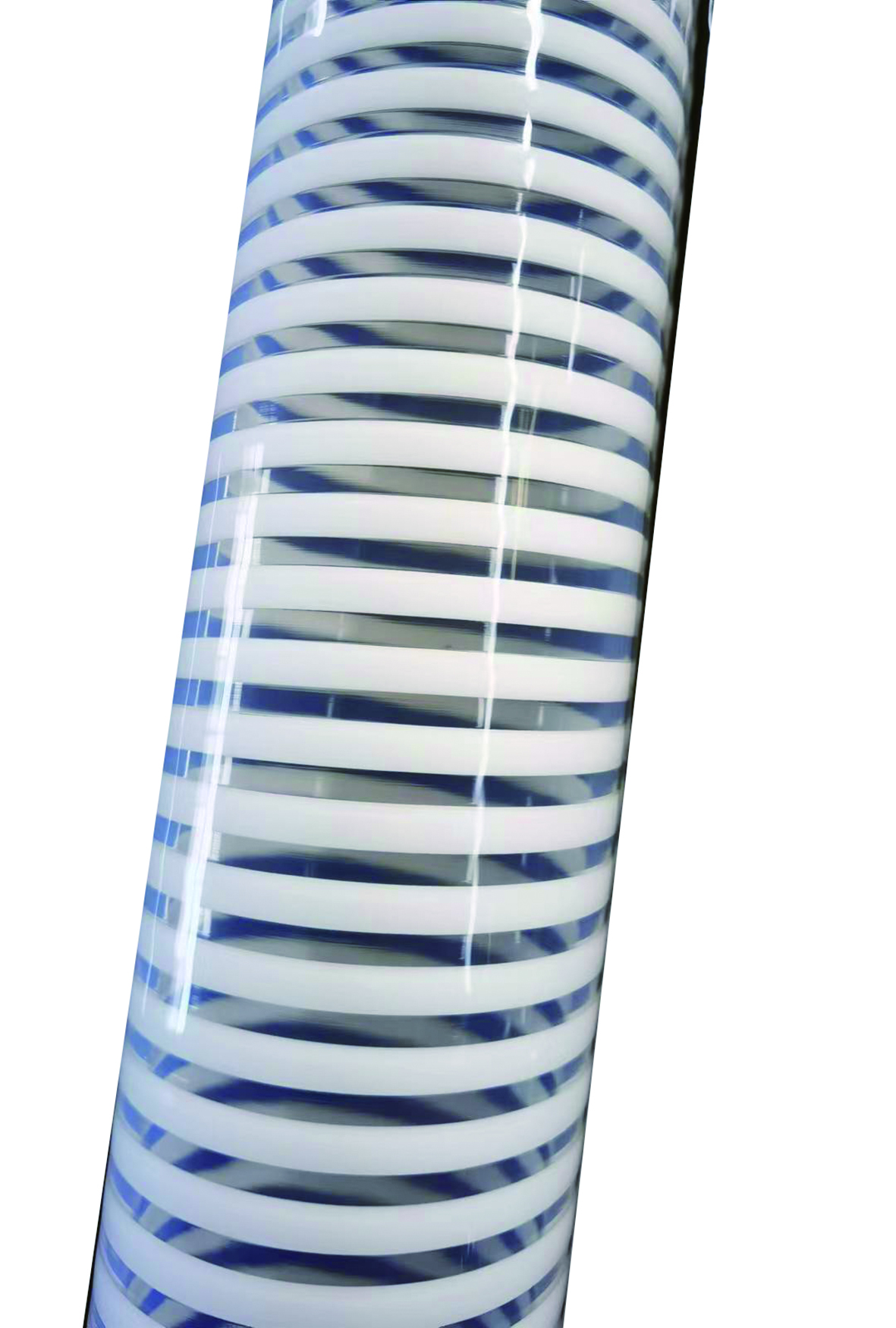

This is a general purpose hose, with good chemical resistance, wear resistance, pressure resistance performance, hose wall smooth to prevent material blockage, pipe wall material to meet food standards, transparent tube body can be easy to observe the flow of materials, different lengths available for choice, the ideal alternative to bulky wrapped rubber hose. This product is light, soft, non-toxic, has superior low temperature resistance, weather resistance is affected by the season, bending freely.There is no suction, break, delamination and other phenomena.The material is rich in anti - aging, anti - ULTRAVIOLET radiation raw materials, long service life.
Application:

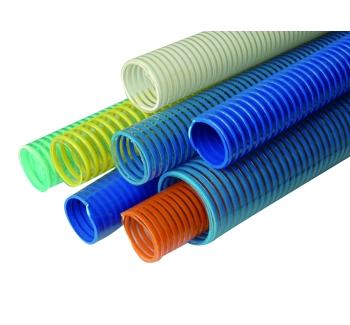

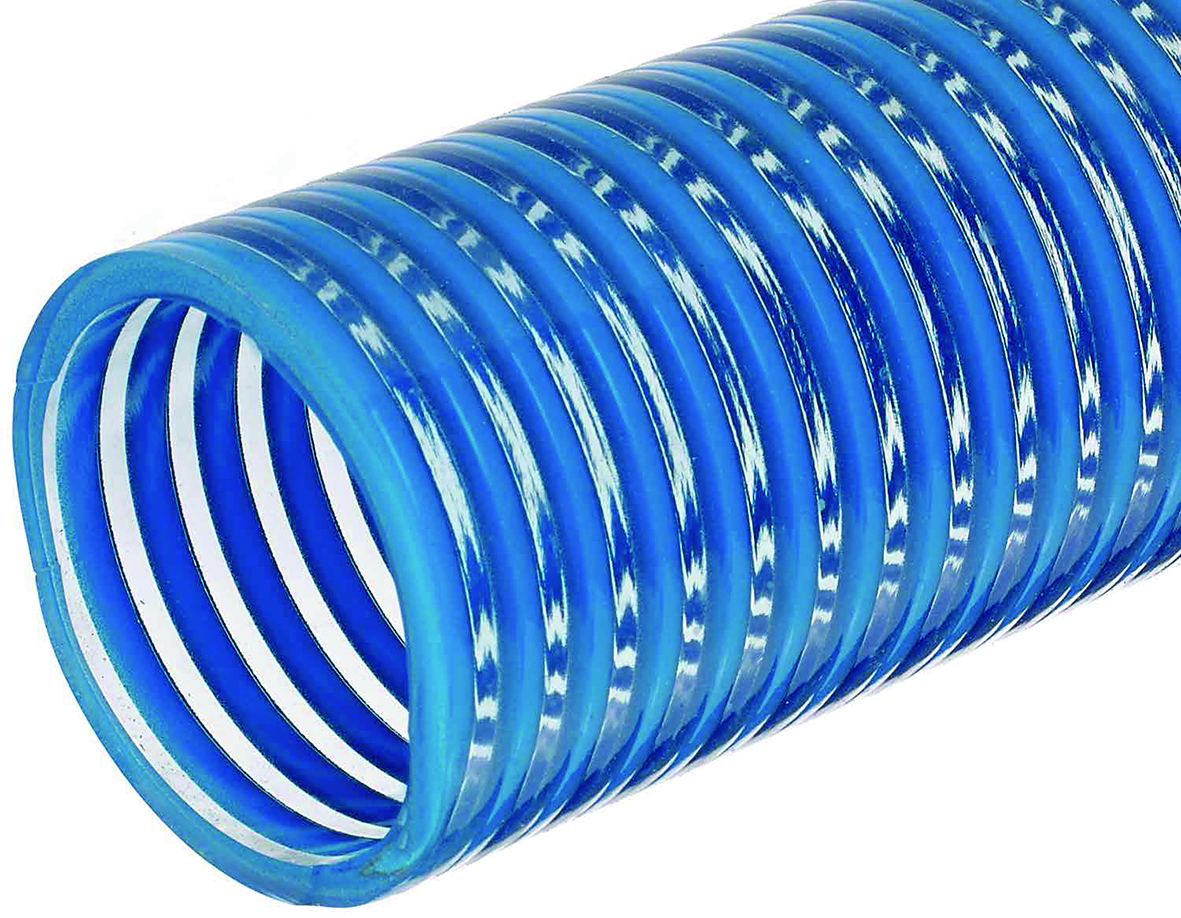

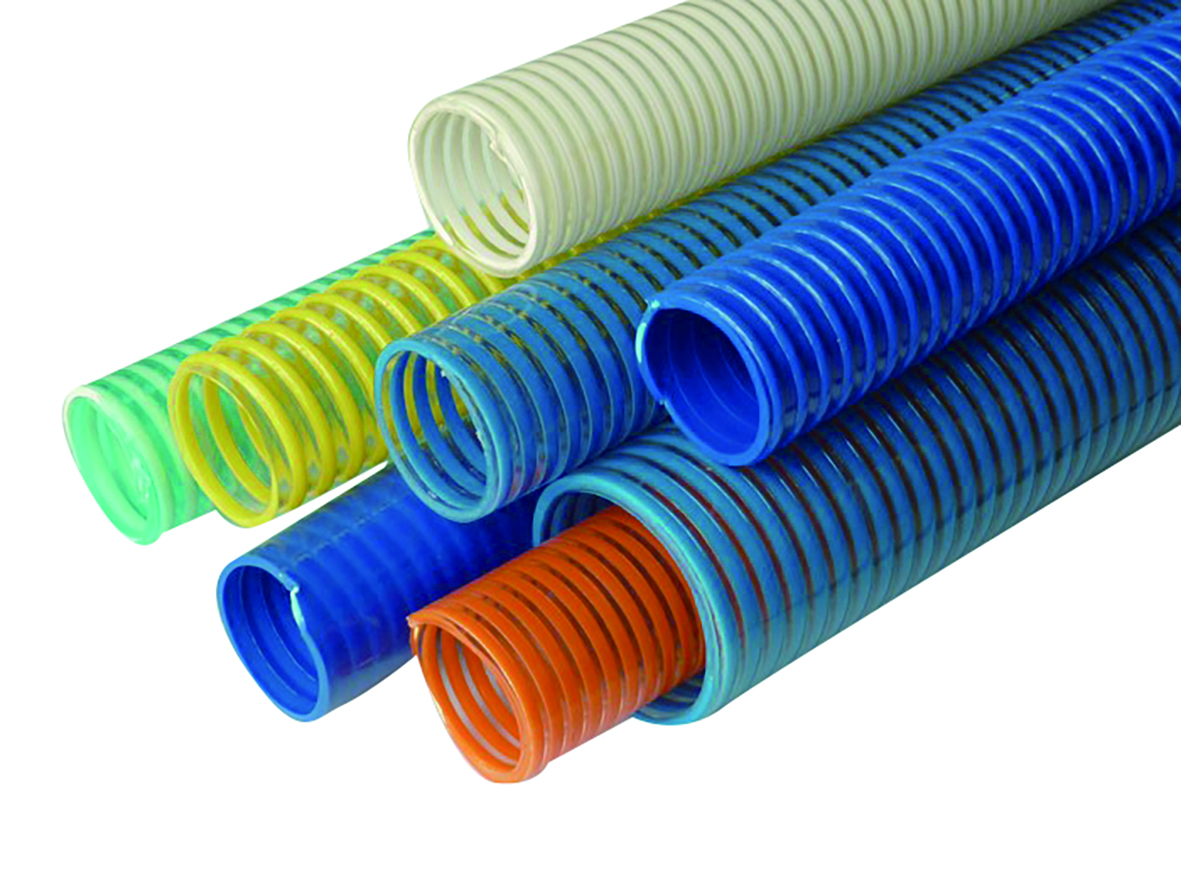

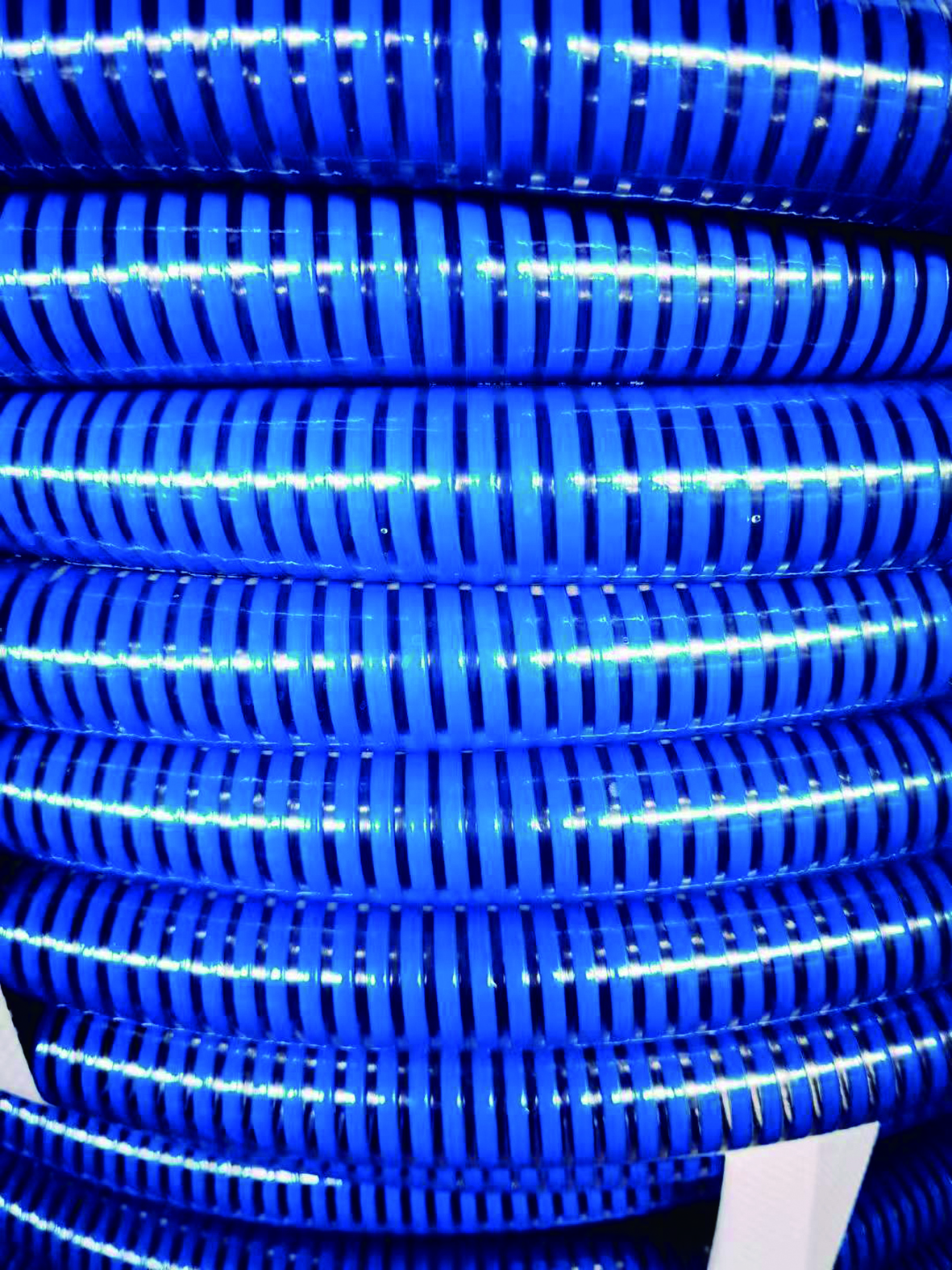

Spiral suction hose is widely used in industrial and mining, agriculture, construction, mining, water conservancy engineering, food, petroleum, chemical industry, health, water pump industry and other general industries.Able to withstand heavy suction and transport of sewage, oil, grease, debris,gravel high pressure.This suction hose can also be used to collect environmental waste from trucks,
the contents of pumps for grease pools, sewage collection, lubricants and most light chemicals.
Temperature Range -15ºC to +65ºC
Inner Diameter | Outer Diameter | Weight | W.P.(at 23ºC) | Standard Length | ||
inch | mm | mm | kg/m | bar | psi | m |
3/4 | 19.0±0.5 | 25.0±0.5 | 0.28 | 8 | 120 | 30 |
1 | 25.4±0.5 | 31.4±0.5 | 0.35 | 8 | 120 | 30 |
1-1/4 | 31.7±0.5 | 37.7±0.5 | 0.40 | 7 | 100 | 30 |
1-1/2 | 38.0±1.0 | 46.0±1.0 | 0.65 | 7 | 100 | 30 |
2 | 50.8±1.5 | 58.8±1.5 | 1.05 | 6 | 90 | 30 |
2-1/2 | 63.5±1.5 | 72.5±1.5 | 1.30 | 6 | 90 | 30 |
3 | 76.2±1.5 | 86.2±1.5 | 1.70 | 5 | 75 | 30 |
4 | 101.6±1.5 | 113.6±1.5 | 3.00 | 5 | 75 | 30 |
5 | 127.0±1.5 | 141.0±1.5 | 3.60 | 4 | 60 | 30 |
6 | 152.4±1.5 | 168.4±1.5 | 5.50 | 4 | 60 | 30 |
8 | 203.2±2.0 | 219.2±2.0 | 7.00 | 3 | 45 | 30 |
10 | 254.0±2.0 | 274.0±2.0 | 12.00 | 2 | 30 | 30 |
12 | 304.8±2.0 | 328.8±2.0 | 18.00 | 2 | 30 | 30 |
