Applications:
The hose is widely used for drawing and conveying water, oil and powder in the factories, agriculture, engineering, foodstuffs and transparent. The hose can be used for conveying milk, beverage, distilled liquor, beer, jam and other foods. We can also insert the copper wire into hose. This hose can avoid the block of the flowing in the hose due to static, and protect users from getting electric shock or electric current impingement.
Features:

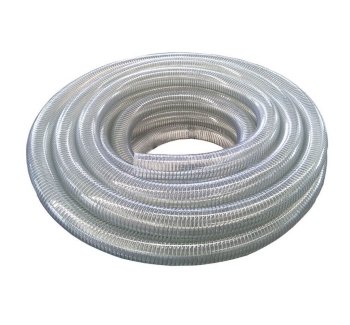

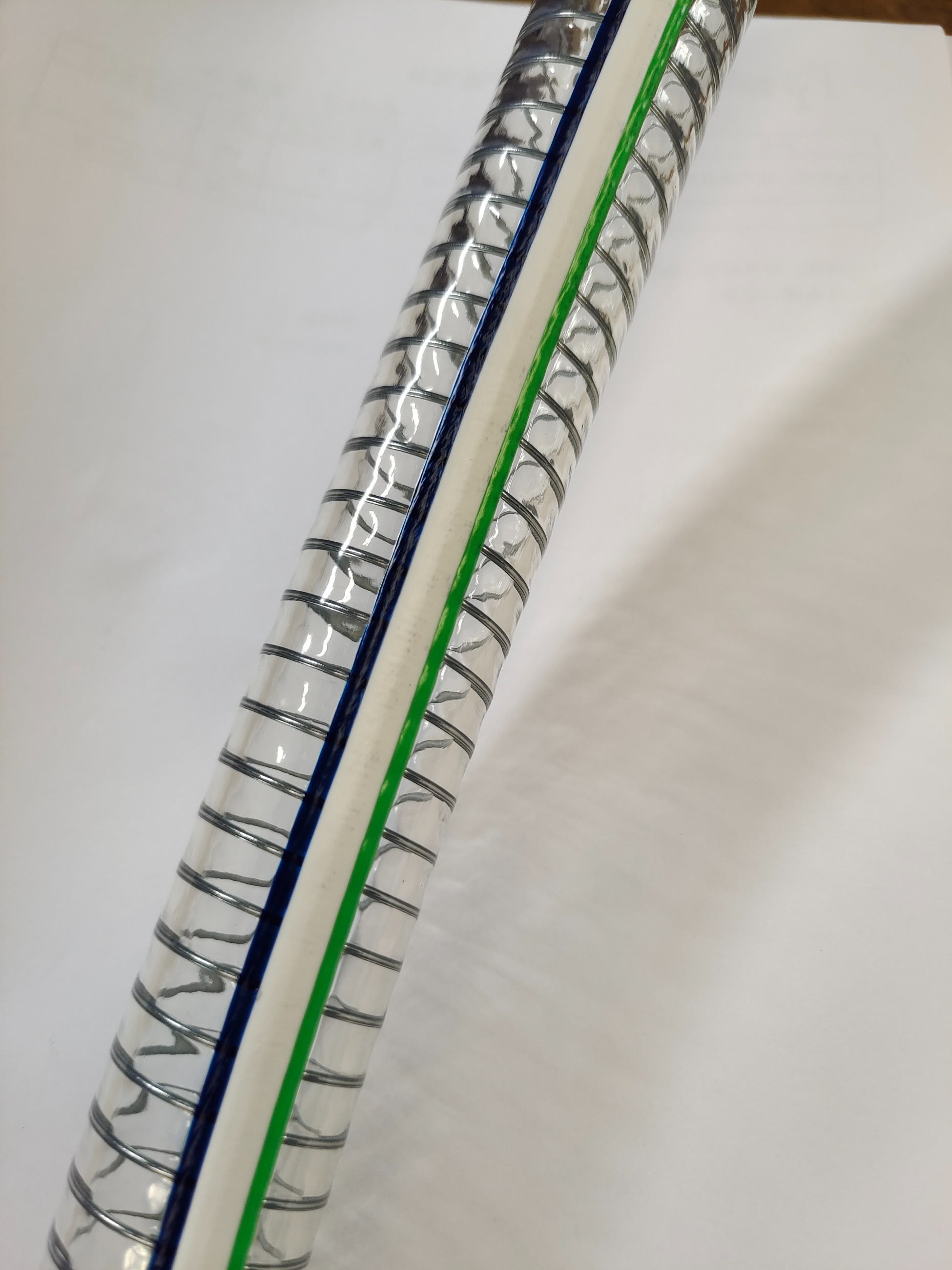

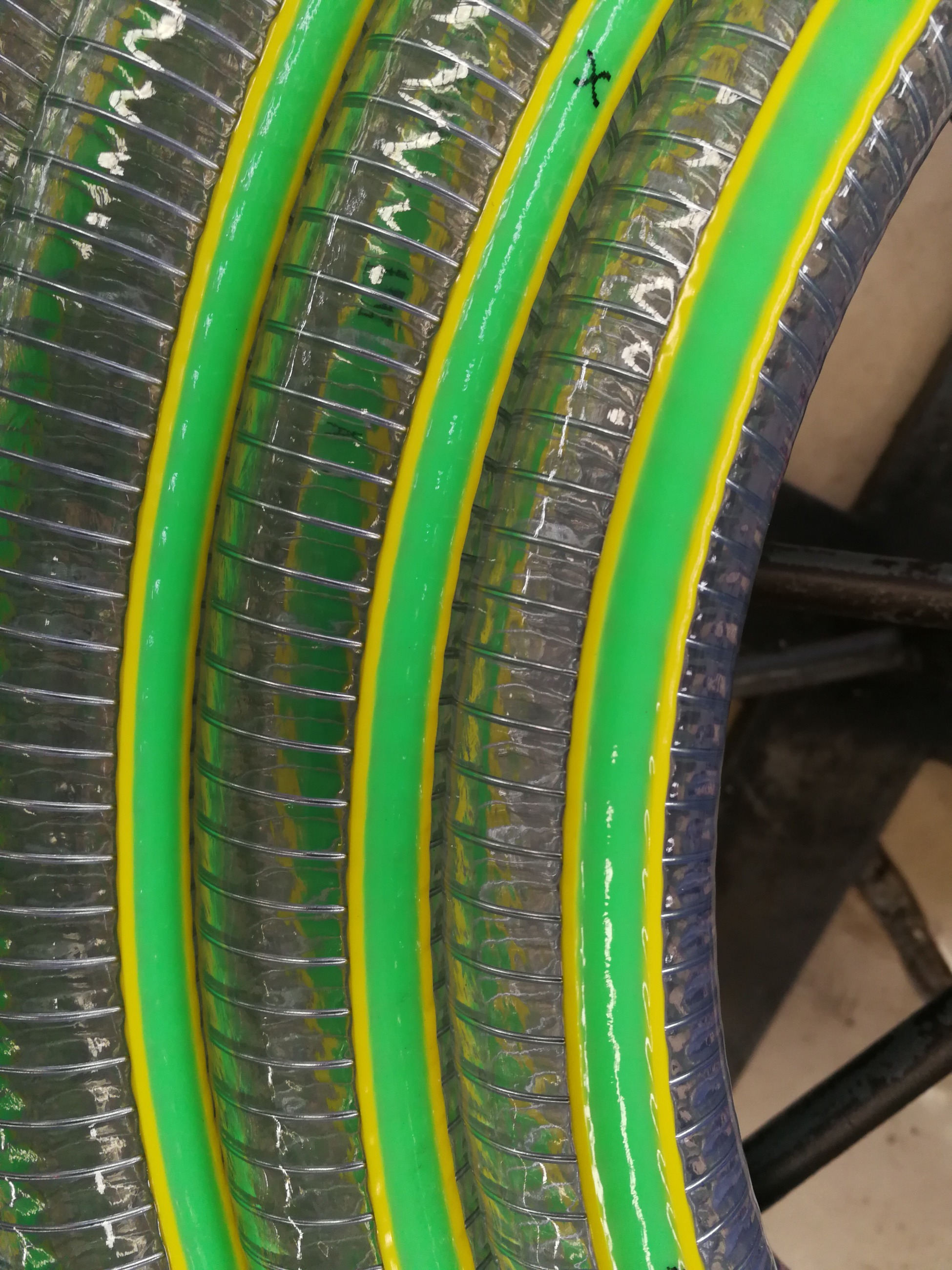

This hose, with steel wire screwing inlaid in the hose, is light, transparent, with small bending radius. It has good adaptability to hard weather conditions and minus pressure. With colorful symbol lines on the surface of the hose, it can be beautiful.
Temperature Range: -5℃ ~65℃
Nominal Dimension | Size | Length | W.P. | B.P. | Weight | Volume | ||
lnch | I.D. mm | O.D. mm | M | Bar | Bar | Kg/roll | M3 | |
3/8" | 9 | 14±0.2 | 100 | -1~10 | 30 | 15 | 0.027 | |
10 | 15±0.2 | 100 | -1~10 | 30 | 16 | 0.041 | ||
9 | 15 | 100 | -1~11 | 33 | 18 | 0.029 | ||
10 | 16 | 100 | -1~11 | 33 | 20 | 0.045 | ||
1/2" | 12 | 17±0.2 | 100 | -1~9 | 30 | 17 | 0.044 | |
12 | 18 | 100 | -1~10 | 30 | 22 | 0.049 | ||
5/8" | 15 | 22 | 100 | -1~10 | 30 | 31 | 0.074 | |
15 | 21±0.2 | 100 | -1~9 | 30 | 26 | 0.074 | ||
16 | 20±0.2 | 100 | -1~8 | 20 | 18 | 0.061 | ||
16 | 23±0.2 | 100 | -1~9 | 30 | 32 | 0.063 | ||
3/4" | 19 | 26 | 50 | -1~10 | 30 | 18 | 0.052 | |
19 | 25.5±0.2 | 50 | -1~8 | 20 | 15 | 0.05 | ||
20 | 26±0.2 | 50 | -1~8 | 20 | 16 | 0.05 | ||
20 | 24.5±0.2 | 50 | -1~8 | 20 | 13 | 0.05 | ||
7/8" | 22 | 30±0.2 | 50 | -1~8 | 20 | 25 | 0.065 | |
22 | 27±0.2 | 50 | -1~8 | 20 | 15 | 0.058 | ||
1" | 25 | 33 | 50 | -1~10 | 25 | 27 | 0.085 | |
25 | 29±0.2 | 50 | -1~7 | 20 | 11 | 0.065 | ||
25 | 30±0.2 | 50 | -1~7 | 20 | 18 | 0.069 | ||
25 | 32±0.2 | 50 | -1~7 | 20 | 25 | 0.078 | ||
1-1/4" | 32 | 41 | 40 | -1~7 | 20 | 31 | 0.106 | |
32 | 36±0.2 | 50 | -1~5 | 19 | 20 | 0.124 | ||
32 | 38.6±0.2 | 50 | -1~5 | 19 | 30 | 0.133 | ||
32 | 41±0.2 | 50 | -1~6 | 20 | 40 | 0.152 | ||
32 | 41.6±0.2 | 50 | -1~6 | 20 | 45 | 0.13 | ||
1-1/2" | 38 | 48 | 40 | -1~6 | 18 | 42 | 0.154 | |
38 | 42.8±0.2 | 50 | -1~5 | 16 | 25 | 0.154 | ||
38 | 44±0.2 | 50 | -1~5 | 16 | 30 | 0.161 | ||
38 | 44.6±0.2 | 50 | -1~5 | 16 | 35 | 0.169 | ||
38 | 45.5±0.2 | 50 | -1~6 | 18 | 40 | 0.173 | ||
38 | 46.4±0.2 | 50 | -1~6 | 18 | 45 | 0.184 | ||
1-3/4" | 45 | 56 | 40 | -1~6 | 17 | 52 | 0.19 | |
45 | 50±0.2 | 50 | -1~5 | 16 | 30 | 0.198 | ||
45 | 52±0.2 | 50 | -1~5 | 16 | 40 | 0.211 | ||
45 | 53±0.2 | 50 | -1~5 | 16 | 50 | 0.229 | ||
1-7/8" | 48 | 59 | 40 | -1~5 | 16 | 56 | 0.208 | |
48 | 54.6±0.2 | 50 | -1~5 | 15 | 40 | 0.234 | ||
48 | 56.4±0.2 | 50 | -1~5 | 15 | 60 | 0.262 | ||
48 | 58±0.2 | 50 | -1~5 | 15 | 70 | 0.267 | ||
2" | 50 | 62 | 40 | -1~5 | 16 | 64 | 0.276 | |
50 | 55.6±0.2 | 50 | -1~5 | 10 | 40 | 0.258 | ||
50 | 57.2±0.2 | 50 | -1~5 | 14 | 50 | 0.268 | ||
50 | 58.2±0.2 | 50 | -1~5 | 14 | 60 | 0.273 | ||
50 | 60±0.2 | 50 | -1~5 | 15 | 70 | 0.289 | ||
2-5/46" | 58 | 70 | 40 | -1~5 | 15 | 80 | 0.35 | |
2-1/2" | 63 | 80 | 30 | -1~5 | 14 | 84 | 0.33 | |
64 | 72.3±0.2 | 40 | -1~4 | 10 | 60 | 0.351 | ||
64 | 75±0.2 | 40 | -1~4 | 10 | 80 | 0.37 | ||
64 | 76±0.2 | 40 | -1~4 | 10 | 94 | 0.37 | ||
64 | 77±0.2 | 40 | -1~4 | 10 | 100 | 0.389 | ||
3" | 75 | 91 | 30 | -1~5 | 13 | 105 | 0.436 | |
75 | 84±0.2 | 40 | -1~4 | 10 | 72 | 0.504 | ||
75 | 85±0.2 | 40 | -1~4 | 10 | 80 | 0.504 | ||
75 | 87±0.2 | 40 | -1~4 | 10 | 100 | 0.681 | ||
75 | 89±0.2 | 40 | -1~4 | 10 | 120 | 0.715 | ||
3-1/2" | 90 | 108 | 20 | -1~4 | 12 | 90 | 0.64 | |
4" | 100 | 118 | 20 | -1~3 | 10 | 96 | 0.505 | |
102 | 112±0.2 | 30 | -1~3 | 10 | 90 | 0.667 | ||
102 | 114±0.2 | 30 | -1~3 | 10 | 105 | 0.676 | ||
102 | 115±0.2 | 30 | -1~3 | 10 | 120 | 0.706 | ||
102 | 118±0.2 | 30 | -1~3 | 10 | 144 | 0.716 | ||
4-3/8" | 110 | 123 | 20 | -1~3 | 10 | 80 | 0.81 | |
4-5/8" | 117 | 133 | 20 | -1~3 | 10 | 110 | 1.024 | |
5" | 127 | 143 | 20 | -1~3 | 10 | 120 | 1.243 | |
5-1/2" | 140 | 156 | 10 | -1~3 | 10 | 65 | 0.627 | |
6" | 152 | 170 | 10 | -1~3 | 10 | 90 | 0.765 | |
6-5/16" | 160 | 176 | 10 | -1~3 | 10 | 85 | 0.922 | |
7" | 180 | 196 | 10 | -1~3 | 10 | 85 | 1.156 | |
8" | 200 | 224 | 10 | -1~3 | 10 | 120 | 1.426 | |
